Surface Polished Alumina Ceramic Parts / Textile Machinery Eyelets Yarn Guide

Product Categories

Dongguan Ming Rui Ceramic Technology Co.,ltd

Contact Now

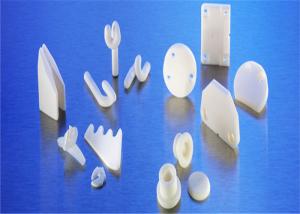

Surface Polished Alumina Ceramic Parts / Textile Machinery Eyelets Yarn Guide

Name: Surface Polished Alumina Ceramic Parts Textile Machinery Eyelets Yarn Guide
Brand: Mingrui
Price: 1 USD

Wholesale Surface Polished Alumina Ceramic Parts / Textile Machinery Eyelets Yarn Guide from china suppliers

Brand Name : Mingrui

Model Number : Customized

Certification : ISO9001-2015,,UL

Place of Origin : China

MOQ : 1 pieces

Price : USD1-1.5/pcs

Payment Terms : L/C, T/T, Western Union, MoneyGram, D/P, D/A

Supply Ability : 5000 pieces wewek

Delivery Time : 10 working days after the order confirmed

Packaging Details : wooden case or carton box with foam

Al2O3 : 95%-99 .9% alumina ceramic

MOQ : 100 PCS

irregular ceramics : textile ceramic

Certificate : ISO9001:2008//ROHS

Moh's Hardness : 9

Purity : 99%

Density : 3.88 g/cm3

Color : ivory, milk white

Polish : Fine Polish degree Ra0.2,glazed

Contact Now

Surface Polished Alumina Textile Ceramic Machinery Eyelets Yarn Guide

Specifications

polished surface alumina textile ceramic eyelets
textile ceramic parts
high mechanical strengh
low price
rush delivery

polished surface alumina textile ceramic eyelet

textile ceramic/ceramics, Ceramic yarn guide
Ceramic guide Ceramic wire guide
Titania/zirconia/alumina ceramic guide

Material: 95%, 99% Alumina ceramic, titania oxide ceramic, zirconia ceramic.
Color can be pink, Ivory, black, yellow etc.

Surface: Polishing or Glazing

Features:

1. these textile ceramic parts do not wear easily, low friction

2. desirable surface fineness

3. suitable for use in textile machinery and in fine spinning and kintting machines

4. we can produce textile ceramic products according to clients specifications and evern the molds and drawings.

Feature

Application

Main usage

1.Great mechanical strength

Electric appliance industry

Automotive industry

1.Heat treatment furnace

and toughened furnace

2.High softening temperature

3.Good resistance

to thermal impact

4.Small thermal expansion

coefficient

Mechanical industry

Engineer industry

2.Inner liner tube and heating

tube in electric furnace

5.Good chill and abrupt

heat properties

6. Resistance to acid and

alkali corrosion

Material Parameters

Item	Testing condition	Unit	95% al2o3	99% al2o3	99% al2o3	99.5% al2o3	zirconia
Bulk density		g/cm3	>3.60	3.7	3.7	3.7	6
Flexural Strength		N/m2×103	2.24	>2.24	>2.24	>2.74	11
Coefficient of linear expansion	20~800°C	×10-6/°C	6.5~8.0	6.5~8.0	6.5~8.0	6.5~8.0	9.5
Permittivity	1MHz		9~10	9~10.5	9~10.5	9~10.5	/
Permittivity	10GHz		9~10	9~10.5	9~10.5	/	/
Insertion loss	1MHz	×10-6	≤4	≤2.5	≤2.5	≤1.5	/
Insertion loss	10GHz	×10-6	≤10	≤6	≤6	/	/
Bulk density resistance	100°C	Ω·Cm	>1013	>1013	>1013	>1014	>1012
Puncture strength		KV/mm	15	15	15	/	/
Thermal conductivity	20°C	W/m·k	25.2	25.2	25.2	29.2	3

More products :

Surface Polished Alumina Ceramic Parts / Textile Machinery Eyelets Yarn Guide

FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have any other question, pls feel free to contact us .

Product Tags:

alumina ceramic components

machining alumina ceramic

Surface Polished Alumina Ceramic Parts / Textile Machinery Eyelets Yarn Guide Images
